Powder Coated
Powder coated arms cover a wide of sizes and styles for use in a number of manufacturing environments.

AQC Double pivot
Available in 6 or 8 inch diameter Increase reach between 5 and 20 feet Can hand load up to 75 Lbs Minimum mounting height 7.8 ft Second pivot increases working area flexibility

AQC Maxi Rail
Allows larger work environments to share equipment easily over larger work areas. Allowing easy work on large equipment or sharing of equipment between work stations. Will work with 4, 5 or 6 inch articulating or telescopic arm. Aluminum rail profile Trolley travels on ball bearing casters Available in multiples of 10 ft increments.

AQC Single pivot
Available in 6 or 8 inch diameter Increase reach between 5 and 20 feet Can hand load up to 150 Lbs Minimum mounting height 7.8 ft

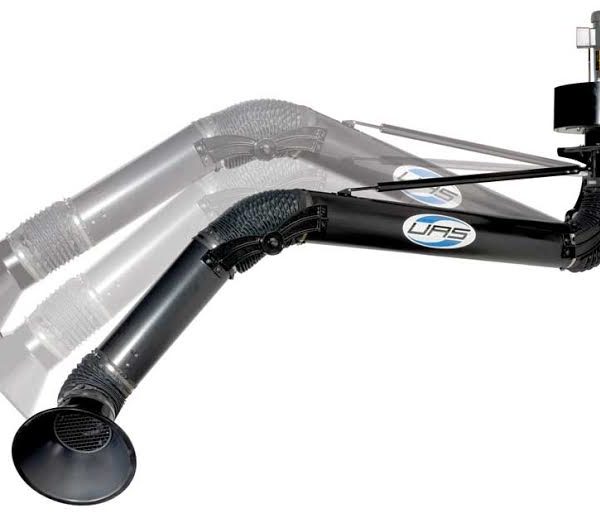

Parker Extraction Arm XA 6 inch
Working Radius: 7, 10 or 12 feet Tube/Hose: 7-12″ Diameter: 6 or 8″ Rec Air Volume: 500-900 cfm depending on arm diameter. Please call for details. Model Options: Standing or Hanging

Parker Extraction Arm XA-T 4 inch
Working Radius: 4-5.5 feet Tube/Hose: 4″. Diameter: 6 or 8″ Rec Air Volume: 500-900 cfm depending on arm diameter. Please call for details. Model Options: Standing or Hanging

Plymovent KUA-200 Antistatic Extraction Arm 8 Inch
The KUA-200 is a flexible extraction arm with an external middle hinge. The removable hood has a safety mesh. The arm is fitted with a sealed shut-off & control valve and is 360° rotatable. The KUA-200 arm is available in three different types: type H: for hanging mounting (wall bracket included) type S: for standing mounting (future development) type ATEX: approved for use in explosive environments Zone 22; marking EX II 3D (for hanging mounting only)

Plymovent MiniMan 100
Working Radius: 3 -5 Feet Weight: 7.5 Lbs Tube/Hose: 3″ Max Air Volume: 250cfm Rec Air Volume: 60-150 cfm Color Options: Yellow and white Model Options: Standing or Hanging

Plymovent MiniMan 75
Working Radius: 3 -5 Feet Weight: 7.5 Lbs Tube/Hose: 3″ Max Air Volume: 250cfm Rec Air Volume: 60-150 cfm Color Options: Yellow and white Model Options: Standing or Hanging

AQC MaxAir Articulating Extraction Arms 3 inch
Working Radius: 3 -5 Feet Tube/Hose: 3″ Rec Air Volume: 125 – 200 cfm Material Options: Powder Coated Steel Model Options: Standing or Hanging

AQC MaxAir Articulating Extraction Arms 4 inch
Working Radius: 5-8.5Feet Tube/Hose: 4″ Rec Air Volume: 150-350 cfm Material Options: Powder Coated Steel Model Options: Standing or Hanging

AQC MaxAir 4 inch Telescopic arm
Working Radius: 52″-72″ Tube/Hose: 4″ Rec Air Volume: 150-350 cfm Material Options: Powder Coated Steel Model Options: Hanging

AQC MaxAir Articulating Extraction Arms 5 inch
Working Radius: 7-14 Feet Tube/Hose: 5″ Rec Air Volume: 350-550 cfm Material Options: Powder Coated Steel Model Options: Standing or Hanging

AQC MaxAir 5 inch Telescopic arm
Working Radius: 52″-72″ Tube/Hose:5″ Rec Air Volume:350-550 cfm Material Options:Powder Coated Steel Model Options: Hanging

AQC MaxAir Articulating Extraction Arms 6 inch
Working Radius: 7-14 Feet Tube/Hose: 6″ Rec Air Volume: 600-800 cfm Material Options: Powder Coated Steel Model Options: Standing or Hanging

AQC MaxAir 6 inch Telescopic arm
Working Radius: 52″-72″ Tube/Hose: 6″ Rec Air Volume: 600-800 cfm Material Options: Powder Coated Steel Model Options: Hanging

AQC MaxAir Articulating Extraction Arms 8 inch
Working Radius: 7-14.5Feet Tube/Hose: 8″ Rec Air Volume: 800-1400 cfm Material Options: Powder Coated Steel Model Options: Standing or Hanging
